Company Advantages1. Fdata smart self service kiosk is made by using good quality material and latest machine technology under the supervision of the team of the experts and professionals.
2. Easy cleaning and maintaining are this product's features. It has a smooth and soft surface with no porous or splicing trace, which prevents it from accumulating dust and dirt.
3. Shenzhen Fdata Co., Ltd. takes every measure to guarantee quality of self-ordering kiosk .
4. Shenzhen Fdata Co., Ltd.'s mission is to supply self-ordering kiosk at reasonable prices in addition to strong after sales support and service to achieve high customer satisfaction.

S1

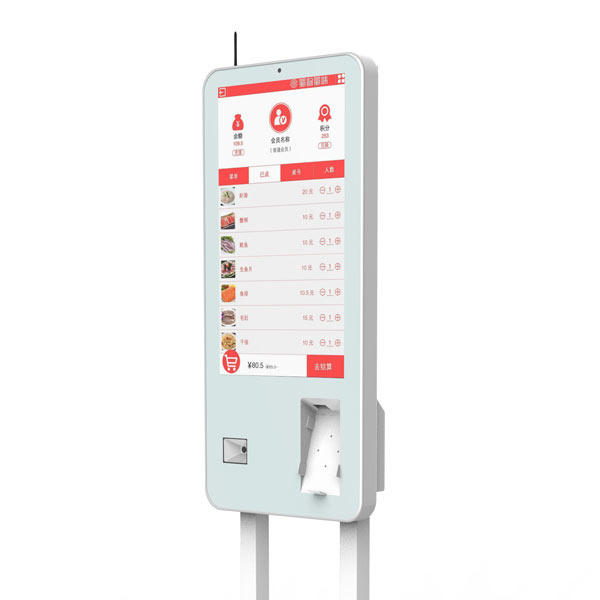

56+Wall-mounted 23.8 inch user friendly self- service ordering kiosk for restaurant and retail

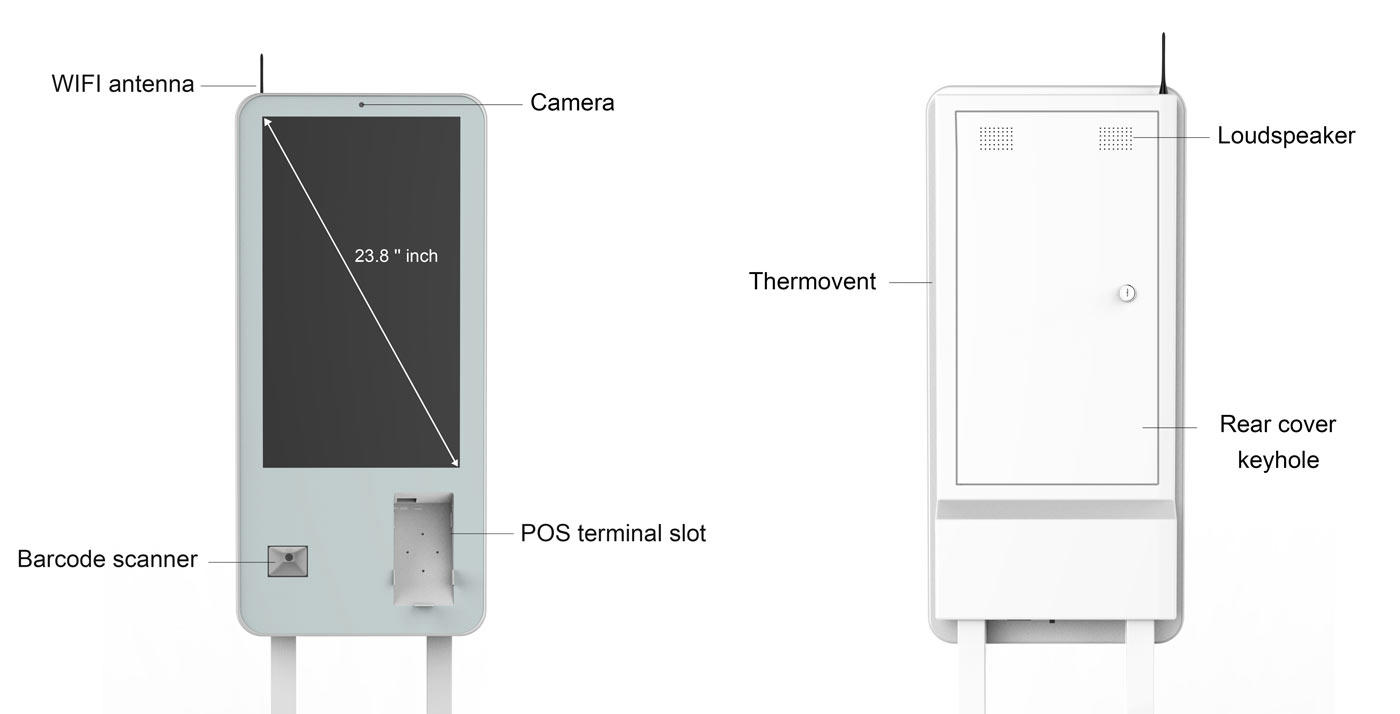

FDATA new model S1 is launching this month, you can see the slim shape with metallic feel.
S1 can be floor standing installation or wall mount installation , fast, do not need to line up, convenience, easy operation, reduce labor costs.
S1 combines the latest in capacitive touch-screen displays, thermal printing, payment processing and public-ready enclosure design.
S1 self-service kiosk is compatible with different software solution.

Size | TBD |
CPU | Quad-core Cortex-A17, 1.8GHZ |
OS | Android 5.1 |
Memory | 2GB DDR3 |
Storage Device | 8GB (optional 16GB) |
LCD | 23.8'IPS, 1920*1080, 300cd/m2 (21.5'/27' FHD) (21.5'/27' FHD, could customize new appearance ) |
Touch Panel | capacitive touch screen (Can be customized) |
Wifi | WIFI 802.11 b/g/n |
Bluetooth | BT 4.0 |
3G/4G | Optional |
Printer | Optional: Thermal printer 58MM or 80MM |
Barcode | Optional: 1D/2D Barcode |
Payment | Optional: placeholder, external POS terminal for payment |
I/O | RJ45*1 |
USB*2 |
DC*1 |
Mini USB*1 |
TF card slot *1 |
Buttons | Power button |
Speaker | 8Ω/5W *2 |
Camera | Optional |
System Language | Support Multi-language OSD: English, Chinese etc |
Support Video: MPG, MPEG-1, MPEG-2, MPEG-4, AVI, MKV, FLV, TS, VOB, TS. |
Support Audio: MP3,WMV |
Support Photo: JPEG, BMP, GIF |
Housing | Metal, standard sliver+black/white case, optional other colors. |
Mounts & Brackets | Optional |

Support customization requirements used in different areas like
1.Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2.Financial Organizations: Banks, negotiable securities, insurance companies, pawnshops;
3.Non-profit Organizations: Telecommunications, post offices, hospital, schools
4.Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Company Features1. Engaged in R&D and manufacturing of self-ordering kiosk for years, Shenzhen Fdata Co., Ltd. develops rapidly.
2. The development of R&D capability is the top priority for Shenzhen Fdata Co., Ltd..
3. Our commitment is to provide innovative products and services of the highest standards that surpass customer expectations of quality, delivery, and productivity. Over the years, Shenzhen Fdata Co., Ltd. has been consistent in providing honest services for every customer. Get an offer! Our mission is, to satisfy and meet the needs of our customers, providing our products and services with the quality, adjusted to their needs and preferences and to create value for our stakeholders through originality and strict adherence to our principles. Get an offer!
